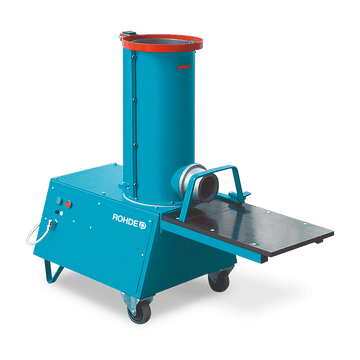

Rohde Pugmill TS20

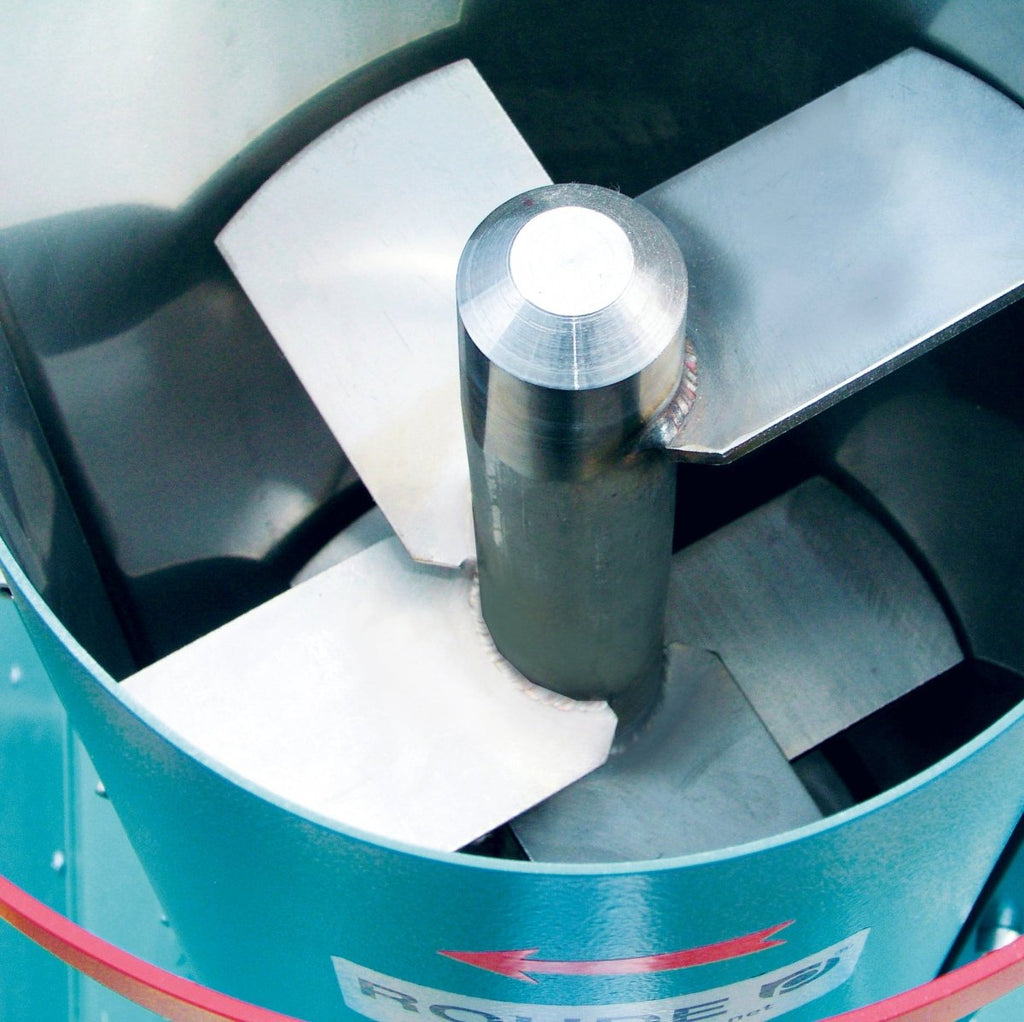

The popular Rohde pugmill, which is often used in schools, as it features a safety feature for automatic cut off. The barrel, shaft and blades are made of stainless steel which is better for those whiter bodied clays. The main body is designed for easy access and cleaning. There are 2 castors on the front so it can be lifted slightly and then moved around.

Other features:

• Large stainless steel mixing barrel with a diameter of 235mm.

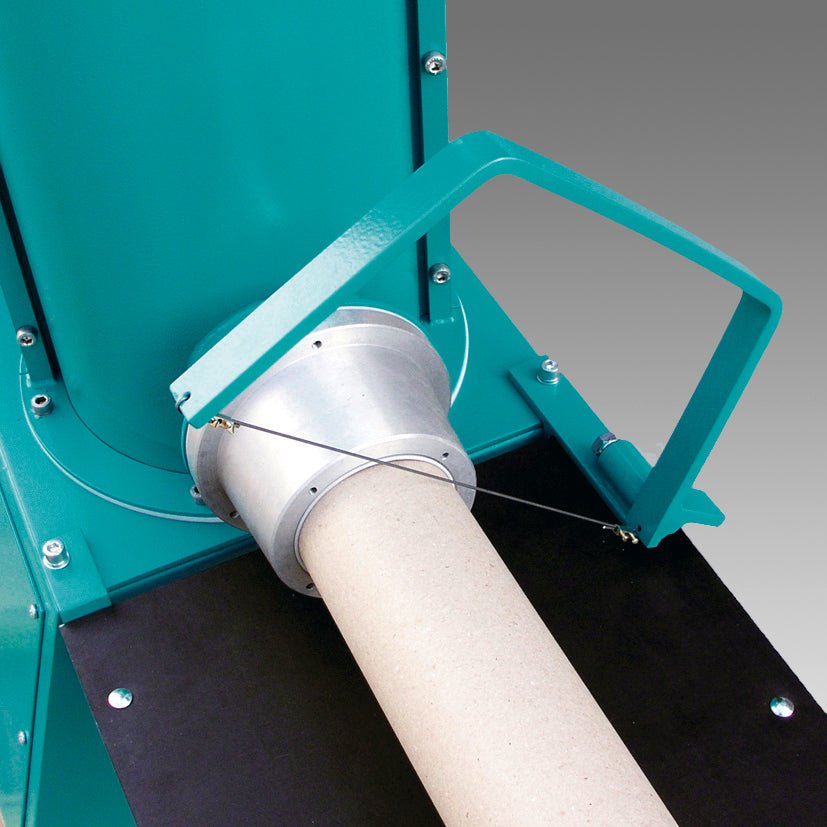

• Extrusion hole made of aluminium with plastic lining (80mm diameter).
• Clay extrusion rate, up to 600kg hour.
• Split barrel for easy cleaning.
• Useful table for cutting of clay extrusions.
• Safety unit for automatic switch-off.
• Cutting wire and other dies can be fitted.

Pugmill comes with 3 years warranty*.

*does not include improper use.

Why buy equipment from Hot Clay?

We have an experienced team who will support you every step of the way, including free technical help if you need it. Call Hot Clay on 01934 863040 option 3, and we will find the best setup for you. If you find this equipment cheaper elsewhere, please contact us and we'll do our best to match it.

Electrical:

• 1.1kW/7.2A 230V single phase, UK standard 13 amp plug and cable.
• 1.1kW/3A (per phase) 400V three phase, 16 amp 5-pin CEE plug and cable.

Maximum Speed: 15rpm.

Maximum Output: 600 kg/hr.

Dimensions:

• External dimensions: 540mm x 1100mm x 1070mm (W x D x H)
• Weight: 105kg

CE Certified
